Truck crossbeam - TR17
TR17
article no.: EHB907TR17

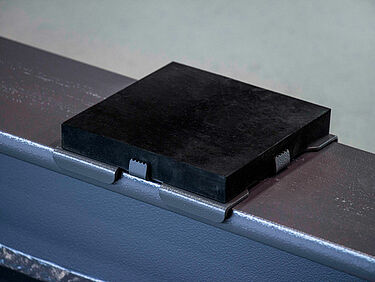

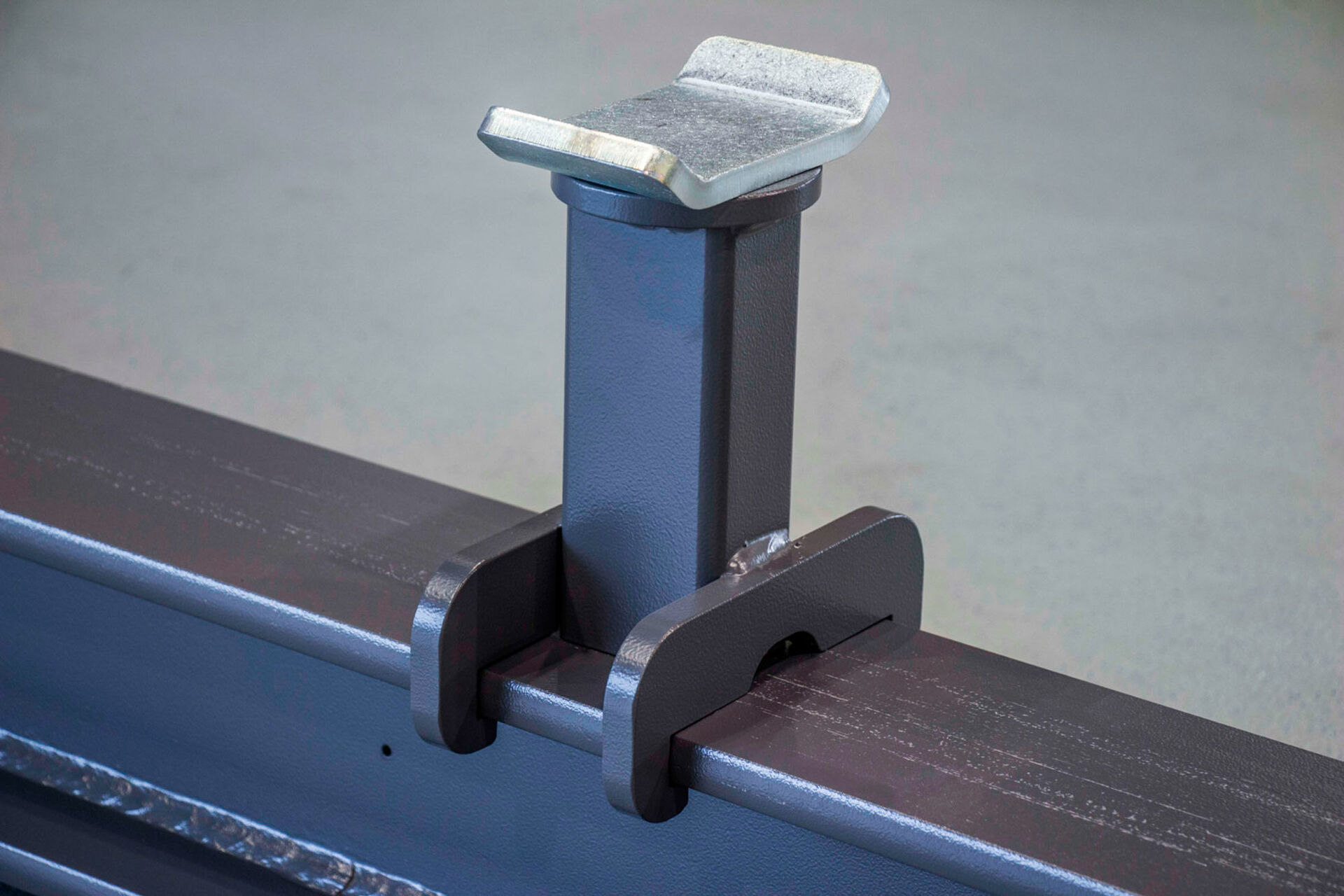

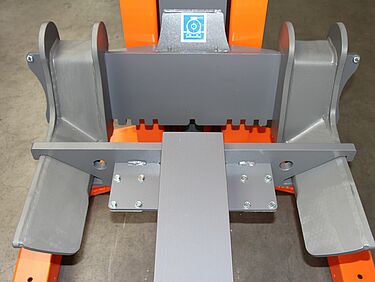

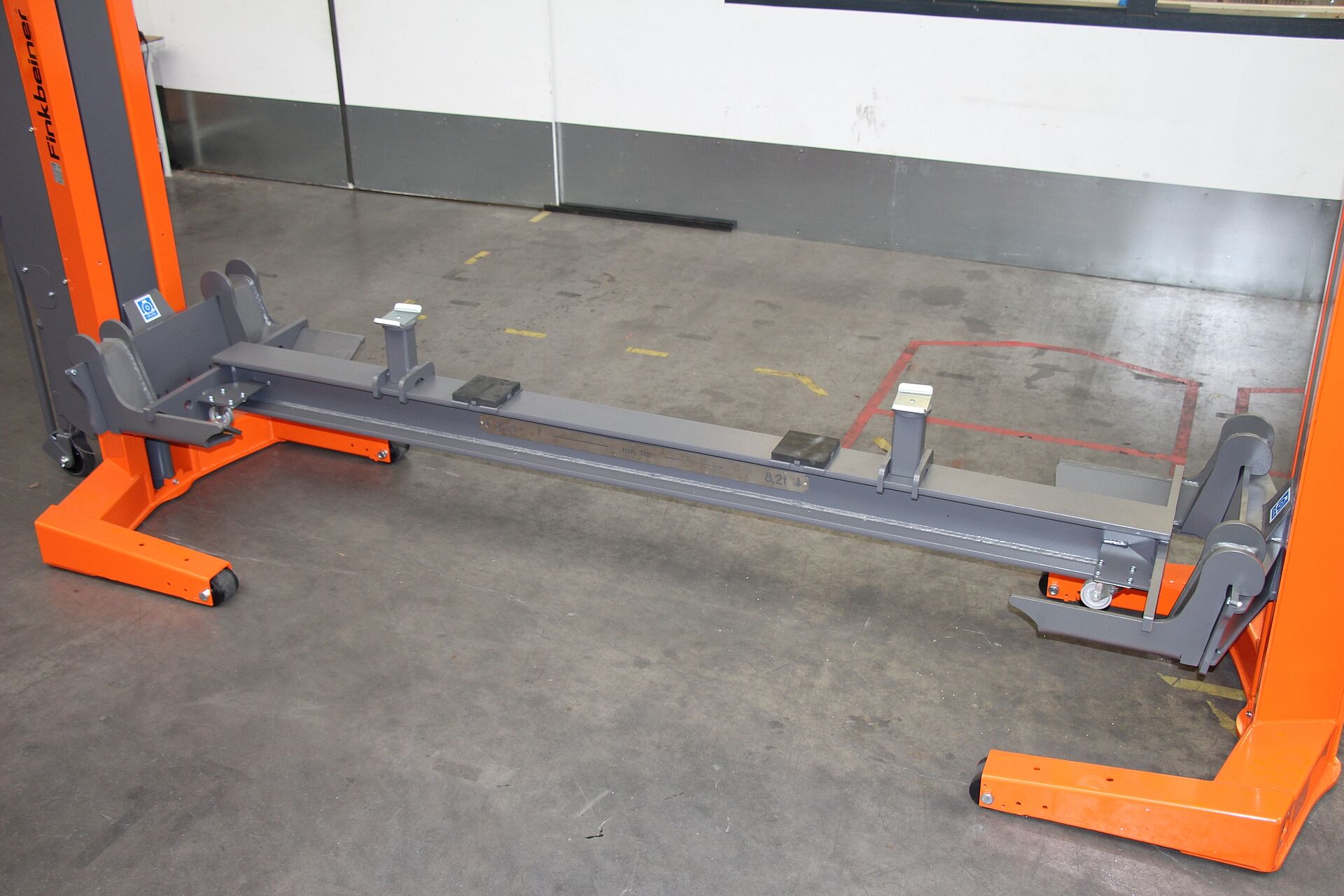

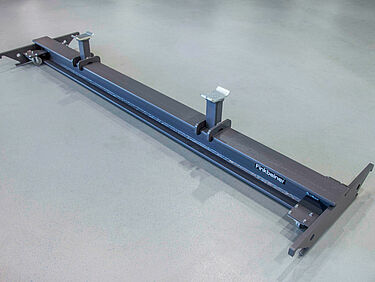

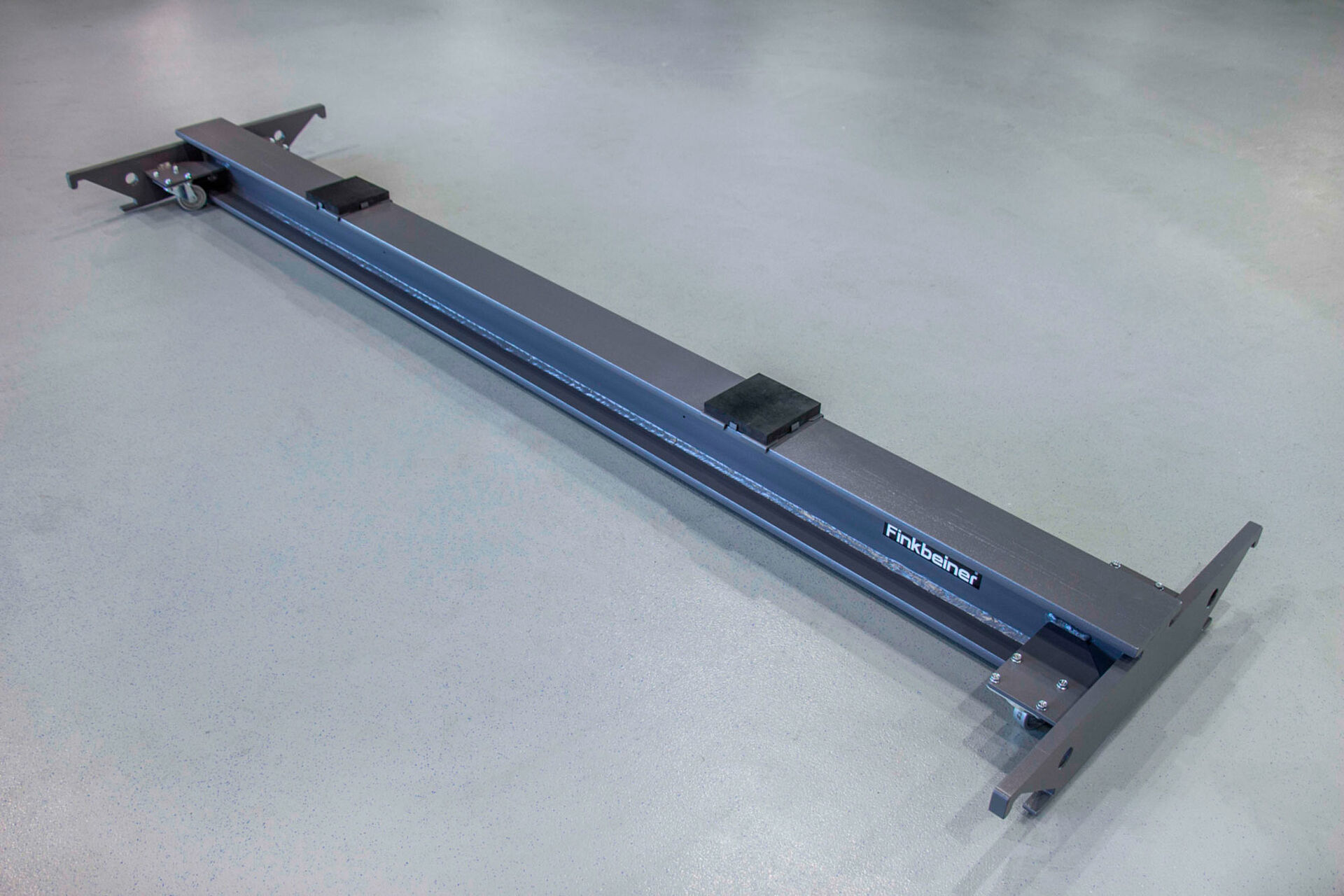

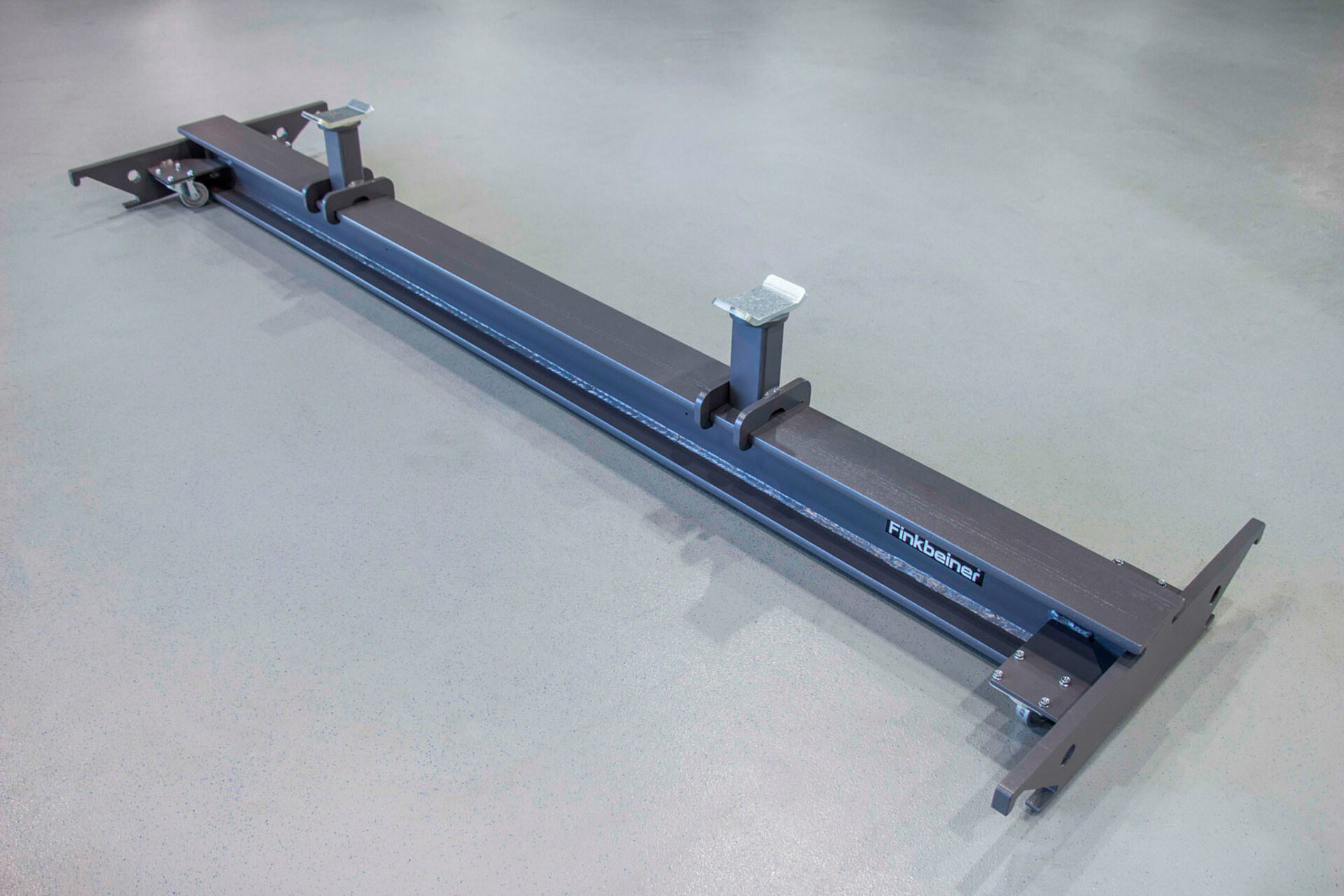

Crossbeam to lift trucks at the vehicle frame in combination with 2 columns. The load support is effected via 2 rubber plates 150 x 150 mm or U supports. Length 3000 mm, 17 t, Support height 225 - 410 mm, including load support extensions 200 mm, manoeuvrable via 4 guide wheels.

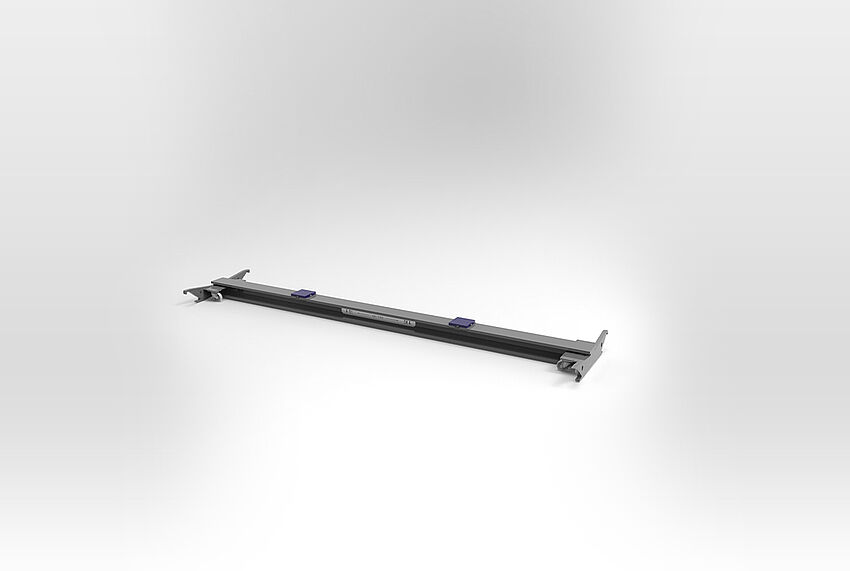

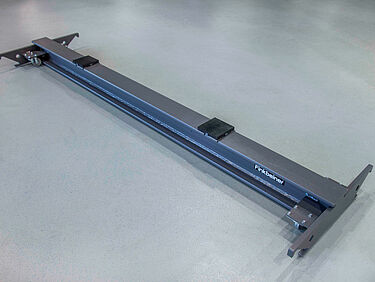

product images

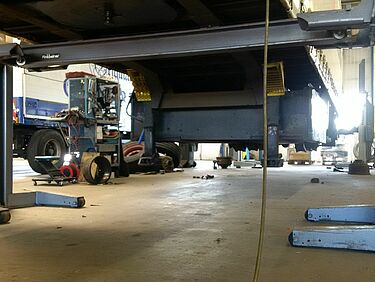

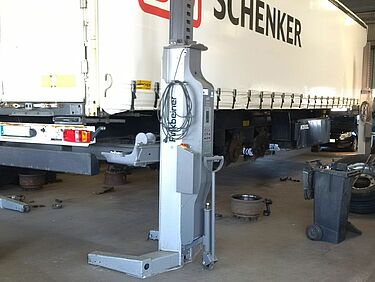

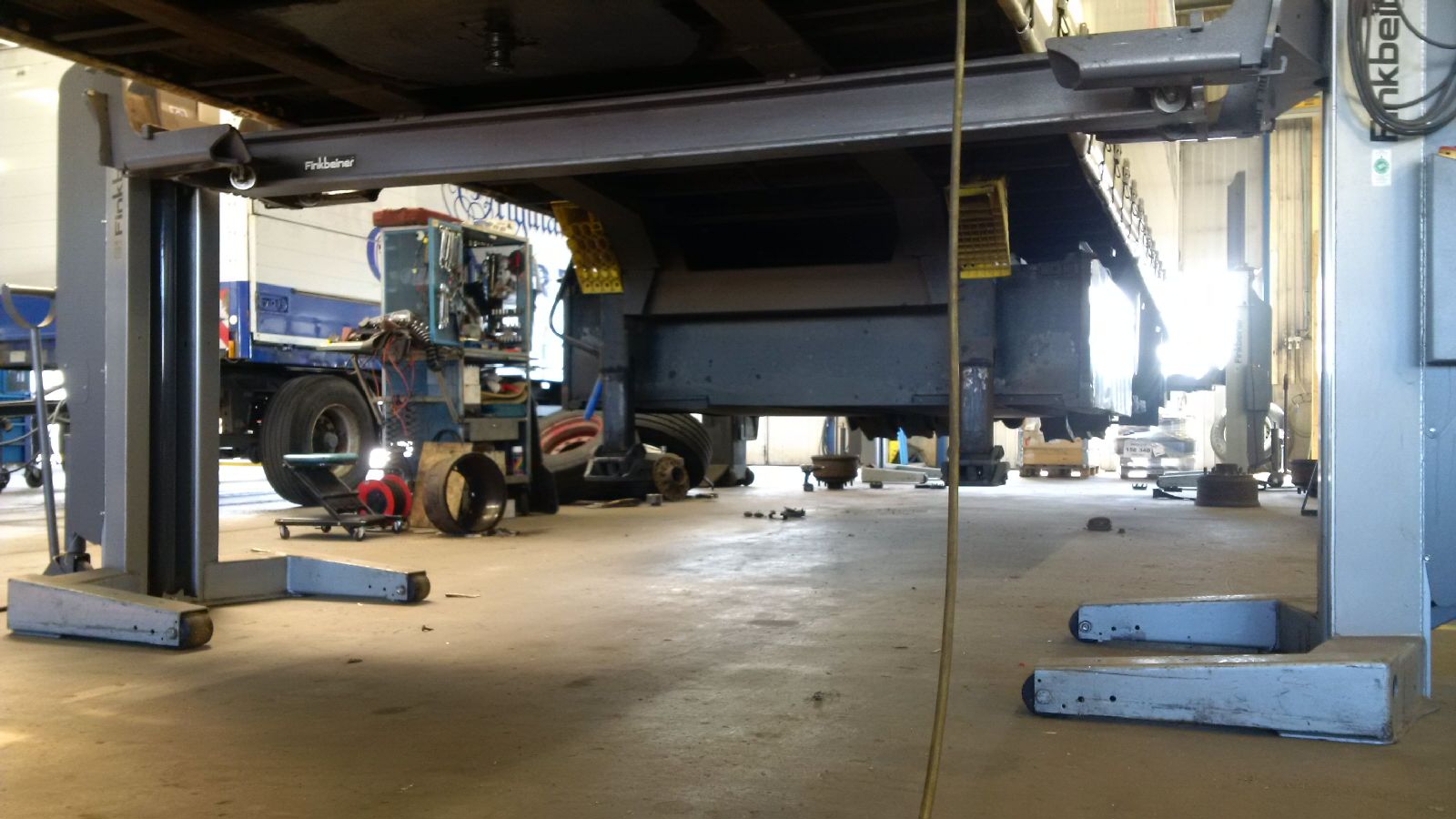

practice images
technical specifications
specifications
| article no. | EHB907TR17 | |
| load support | capacity | 17 t |
| lifting height | minimum support height (mm) | 225 mm |
| travelling device | travelling device | 4 guide wheels |
| ground clearance | 20 mm | |
| dimensions | length | 3000 mm |
| width | 820 mm | |
| height | 200 mm | |
| weight | 250 kg | |
| surface treatment | type of surface treatment | powder coating |
| colour | grey RAL7015 |
