Load support for EAGLE IV/V - TRT412-TR03 +TRT412-LS03
TRT412-TR03 +TRT412-LS03
article no.: EHB907TRT412TR03 + EHB907TRT412LS03
Accessory for EHB907/908V14DC

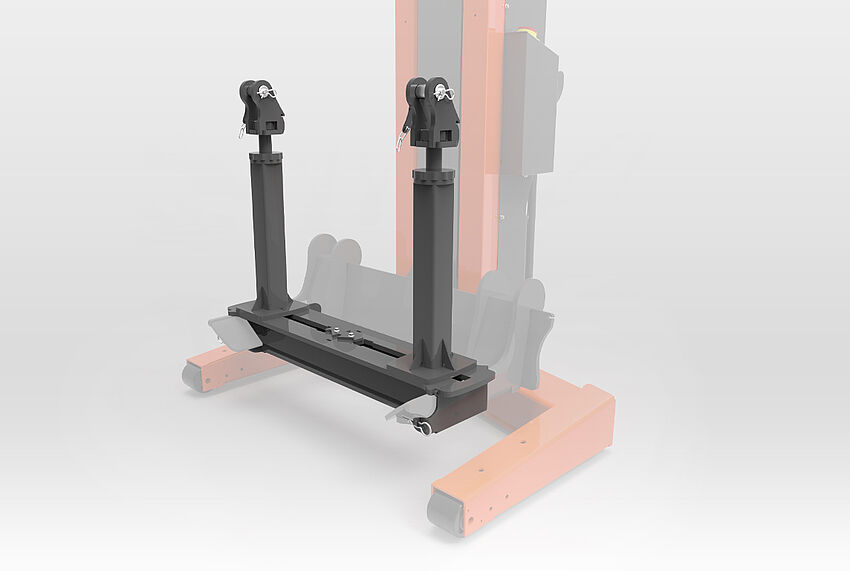

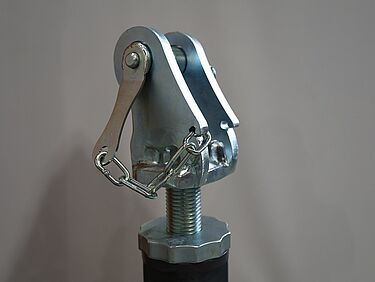

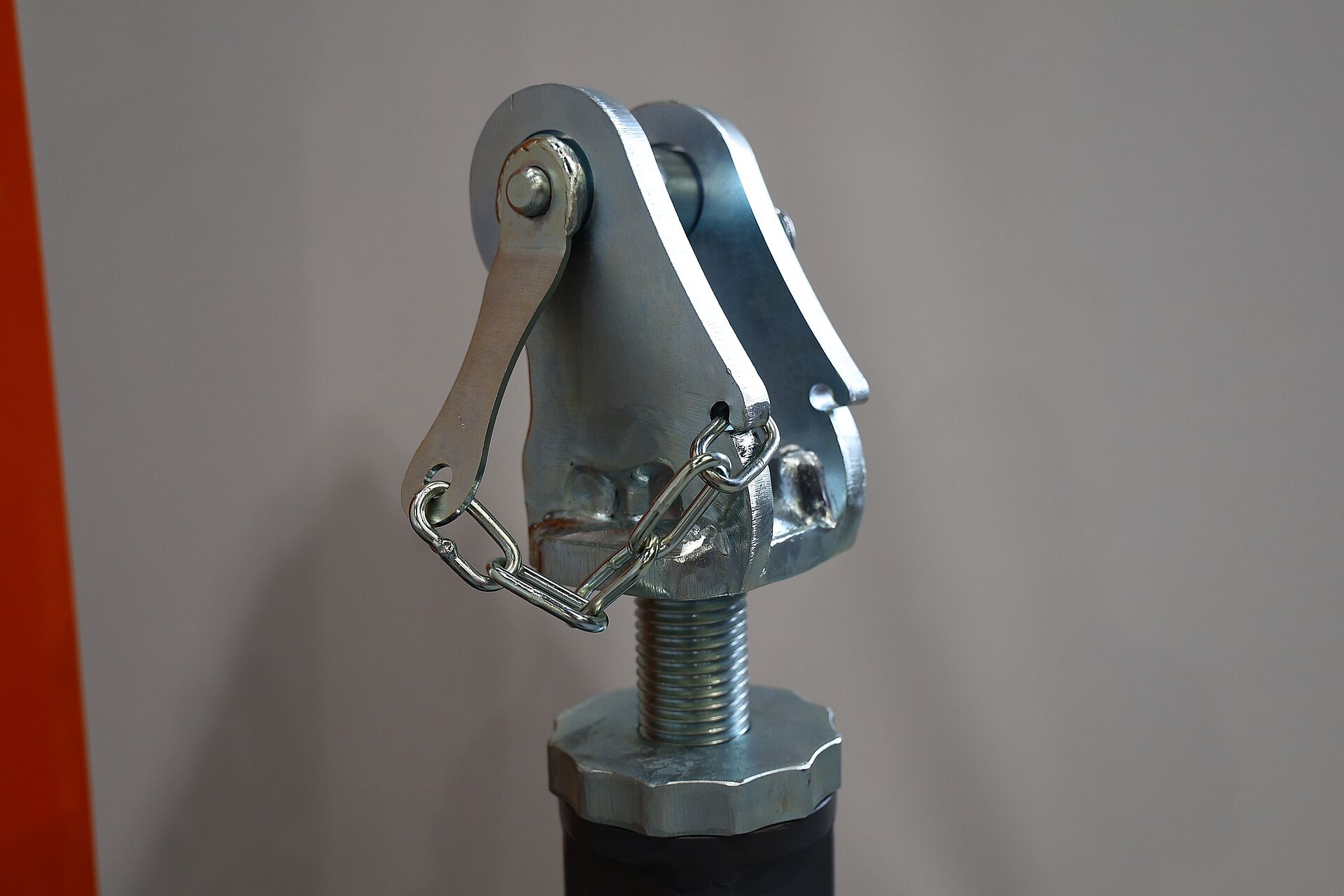

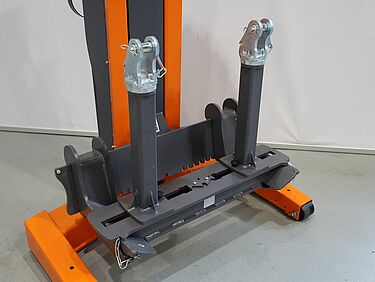

Basic crossbeam TRT412-TR03 to mount onto wheel fork of column, length 1070 mm, with load supports TRT412-LS03 (2 fork supports for wheeled tanks EAGLE IV and V, for support at front or rear, with spindle adjustment and plug pins Ø 37 mm, distance tubes 80 x 80 x 520 mm)
Productdetails
product images
technical specifications
specifications
| article no. | EHB907TRT412TR03 + EHB907TRT412LS03 | |
| load support | capacity | 8.5 t |
| dimensions | length | 1070 mm |
| width | 200 mm | |
| weight | 47 kg | |
| surface treatment | type of surface treatment | powder coating |
| colour | grey RAL7015 |
