Mobile column for fork trucks - GAB905DC wireless
GAB905DC wireless
article no.: GAB905DC01-H | Technical data sheet: Download

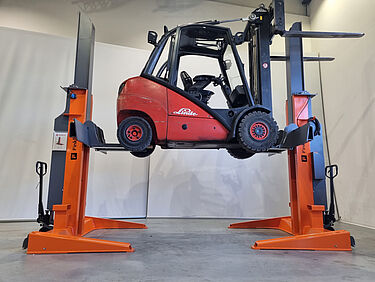

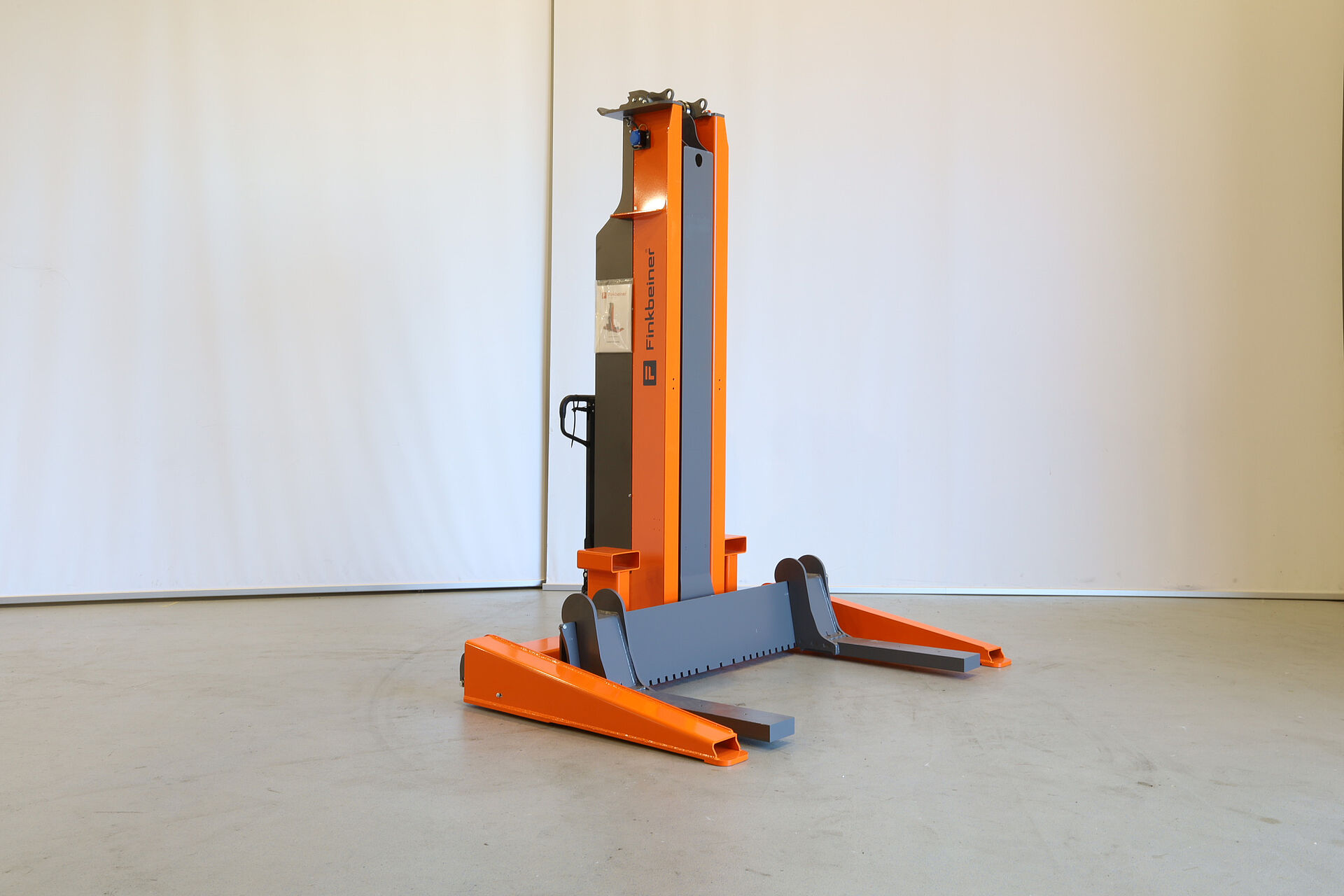

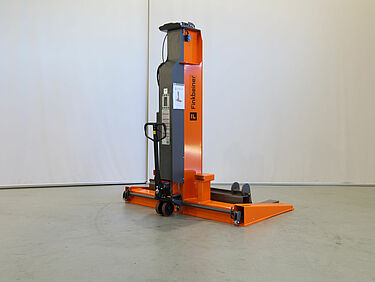

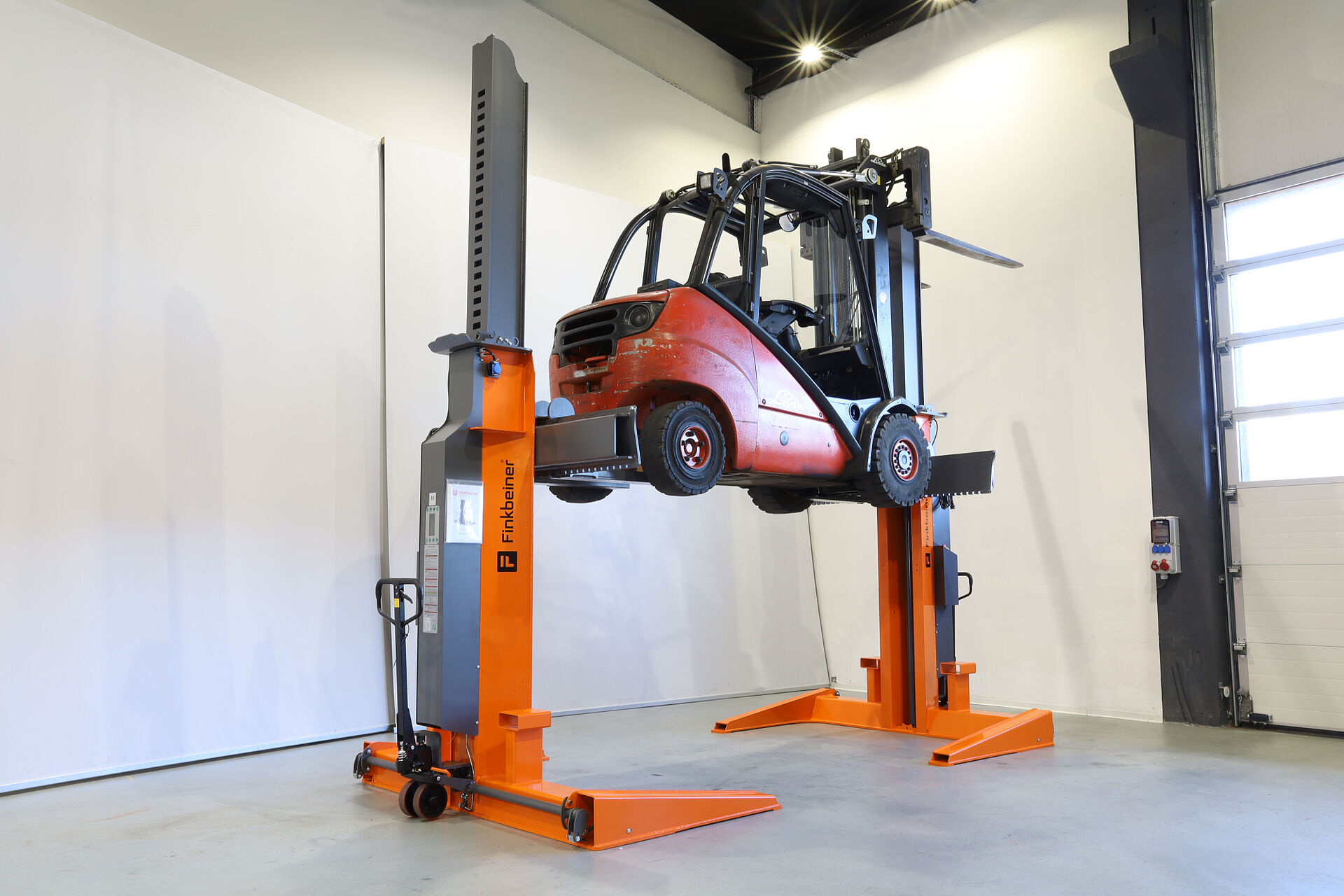

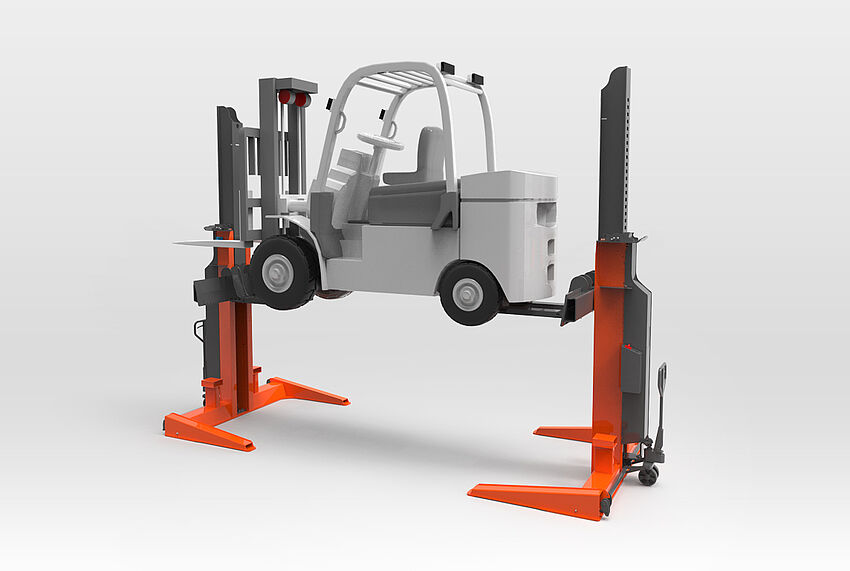

Hydraulic column GAB905DC wireless especially adapted to lift industrial trucks at front and rear. This column has a capacity of 5 tons and adjustable flat fork tines. An independent and flexible use is achieved by the battery drive and radio control. Operation and travelling device at each column.

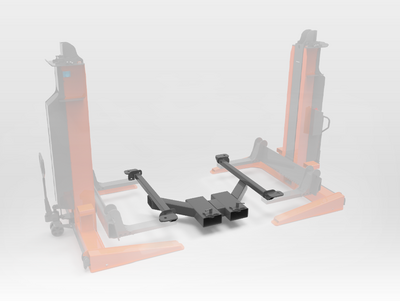

product images
practice images
technical specifications
specifications
| article no. | GAB905DC01-H | |
| lifting unit | type of columns | all columns identical |
| quantity of columns | 1 | |

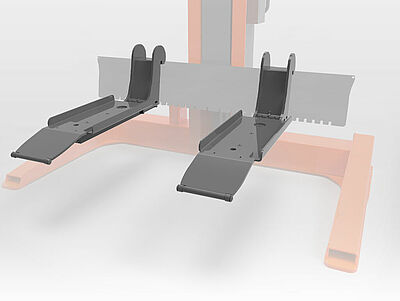

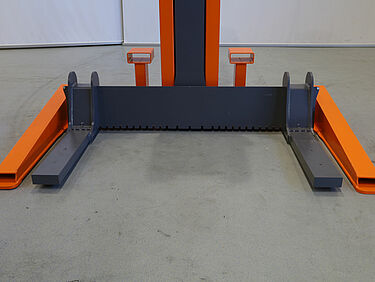

| load support | load support | flat fork tines |
| capacity per column | 5 t | |
| length of fork (mm) | 690 mm | |
| lifting height | lifting stroke effective | 1750 mm |
| lifting height | 1805 mm | |
| speed | lifting time | 90 sec. |
| lowering time (under load) | 90 sec. | |
| drive | mode of drive | electro-hydraulic |
| motor | DC voltage | |
| motor power (kW) | 2.2 kW | |
| power supply | type of power supply | battery-powered |
| type of battery | deep cycle, maintenance-free | |
| battery capacity per column | 80 Ah | |
| lift cycles at full load | 30 | |
| total battery voltage | 24 V | |
| length of charging cable | 10 m | |
| charging concept | EasyCharge | |
| charging voltage | 230 V | |
| frequency of power supply | 50 Hz | |
| charging time | 8 h | |
| communication | communication via radio, wireless | |
| operation | mode of operation | operation at each column |
| activation | all, individual | |
| control | electronic | |
| Softstart | X | |
| regularisation | synchronisation | proportional valves, infinitely variable |

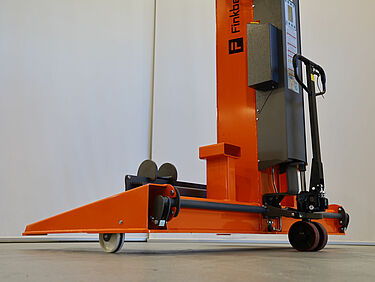

| travelling device | travelling device | at each column |
| travelling device at front | 2 front wheels, hydraulically acting | |
| travelling device at rear | 1 hydraulic pallet jack with twin wheels | |
| ground clearance at front | 100 mm | |
| ground clearance at rear | 100 mm | |
| load securing | load securing | hydraulic and mechanical |
| dimensions | length | 1690 mm |
| width | 2200 mm | |
| height | 2530 mm | |
| height of fork (mm) | 55 mm | |
| weight | weight per column (kgs) | 1070 kg |
| protection class | IP54 | |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
