Jacking beam - FL160-200

FL160-200

article no.: HDSMHFL160-200-F07

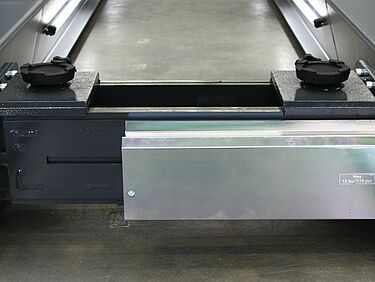

Pneumatic jacking beam for wheel-free lifting at the axle with a capacity of 16 t and a lifting stroke of 200 mm. The load support is effected via 2 cylinders with support plate. The model is designed for 1100 mm distance between the runways.

We recommend the accessory "pneumatic socket DL02", article no. HDSF07-DL02, for direct supply of the jacking beam at the lift.

For HDS as recessed version the accessory "Position Control" Art. No.: HDSMH-UF-F07-AC is required. The jacking beam is not suitable for use within humid areas.

Productdetails

practice images

accessories

HDSBLMH01

floor levelling for pit
of jacking beam

HDSMH-UF-F07-AC

position control for FL160

technical specifications

specifications

article no.		HDSMHFL160-200-F07
load support	load support	2 cylinders with load pad
	capacity	16 t
height	lifting stroke effective	200 mm
drive	mode of drive	hydro-pneumatic
power supply	type of power supply	compressed air
	compressed air connection	8 bar
operation	mode of operation	1 central control unit
	control	pneumatic
load securing	load securing	hydraulic
weight		380 kg
surface treatment	type of surface treatment	powder coating
	colour	grey RAL7015
