Swivel arm extensions - TPL-SWE 250
TPL-SWE 250
article no.: TPL7500-SWE250

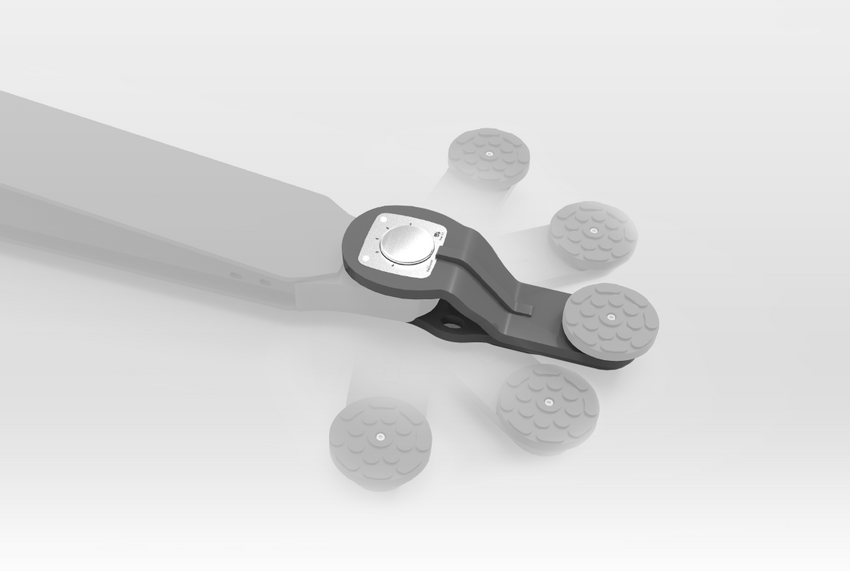

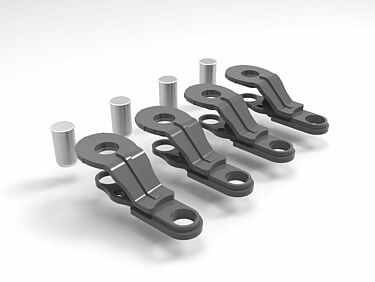

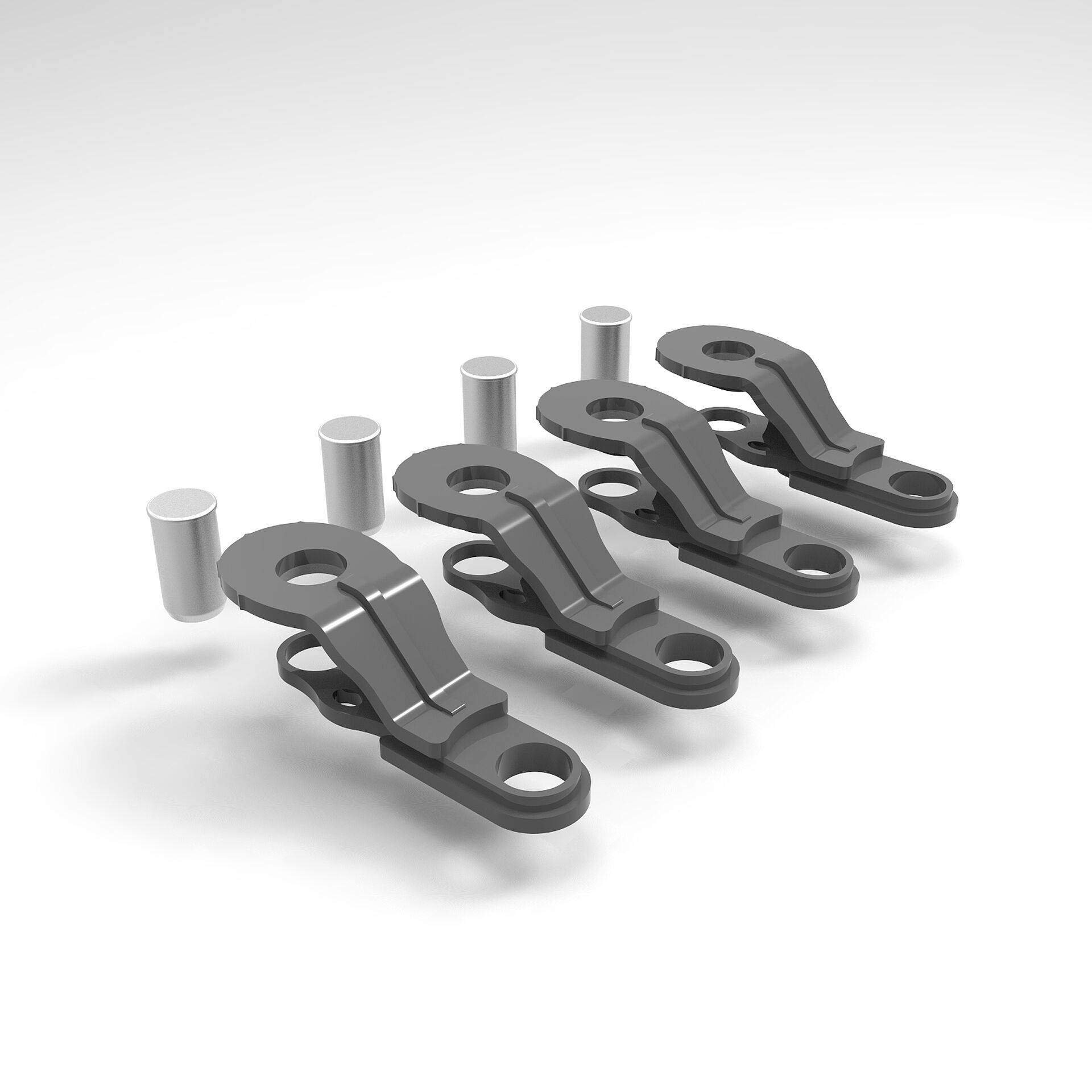

Accessory for 2-post lift TPL7500 for enlargement of the load support area for vehicles with long wheel bases. The pluggable extensions 250 mm can be mounted fast and easily at the swivel arm. Extensions with 5 angle positions to reach difficult load support points at the vehicle. 1 set consists of 4 pcs. extensions 250 mm and 4 pcs. plug pins.
Productdetails
product images
technical specifications
specifications
| article no. | TPL7500-SWE250 | |
| lifting unit | quantity per set | 4 |
| load support | capacity | 7.5 t |
| length of swivel arm at front, minimum (mm) | 485 mm | |
| length of swivel arm at front, maximum (mm) | 1780 mm | |
| length of swivel arm at rear, minimum (mm) | 485 mm | |
| length of swivel arm at rear, maximum (mm) | 1780 mm | |
| distance between supports, maximum | 4960 mm | |
| dimensions | length | 250 mm |
| weight | 43 kg | |
| surface treatment | type of surface treatment | hot galvanisation |
