Swivel arm extensions - TPL-SWE 400
TPL-SWE 400
article no.: TPL7500-SWE400

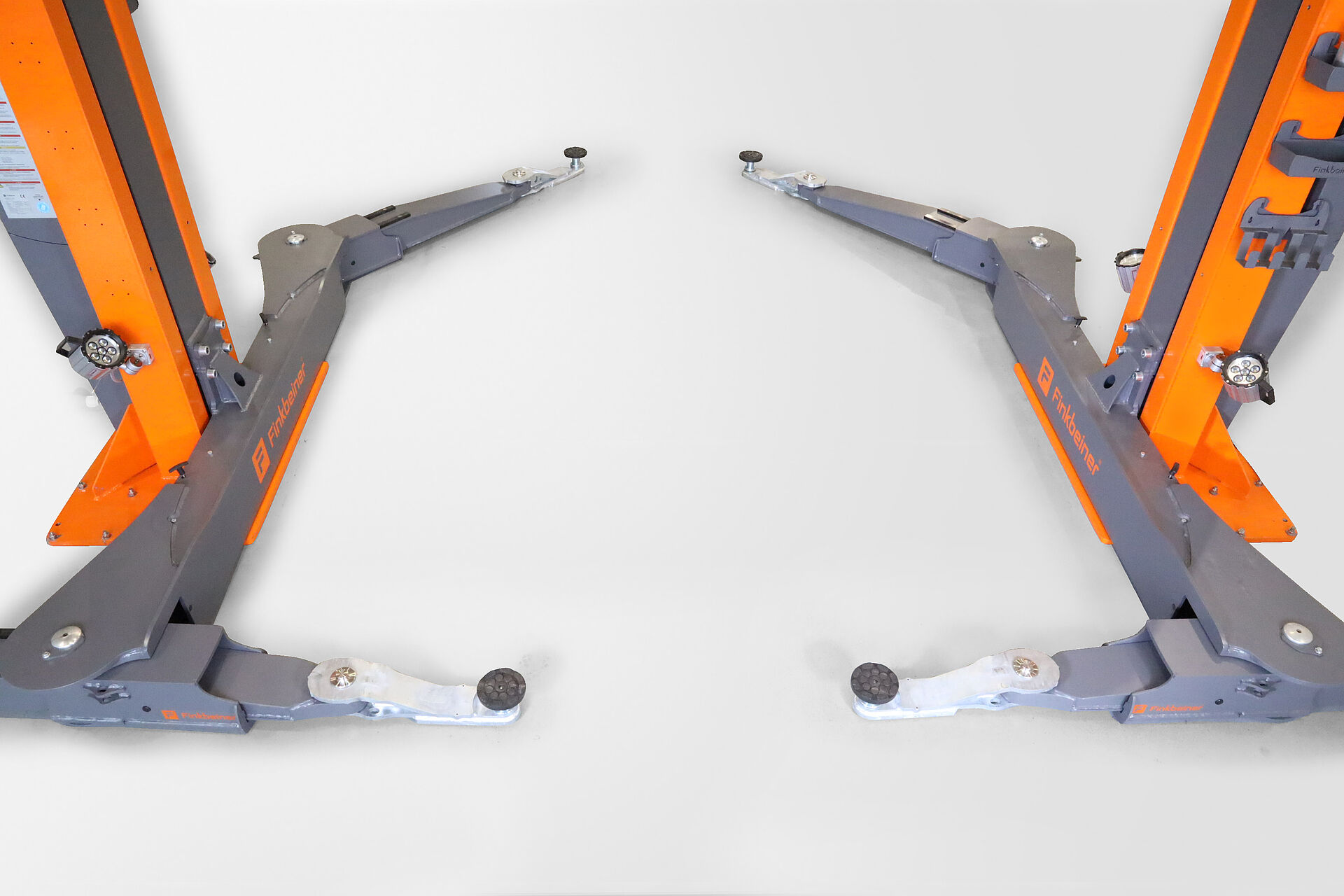

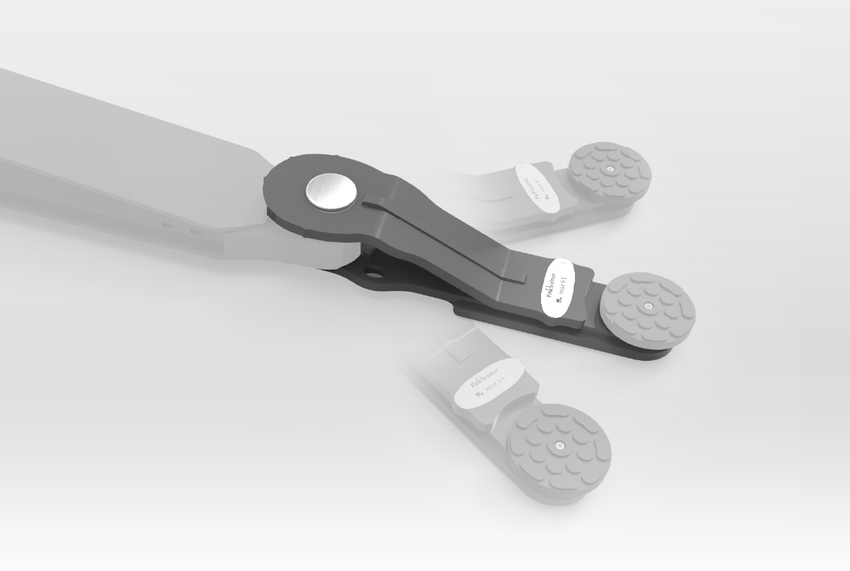

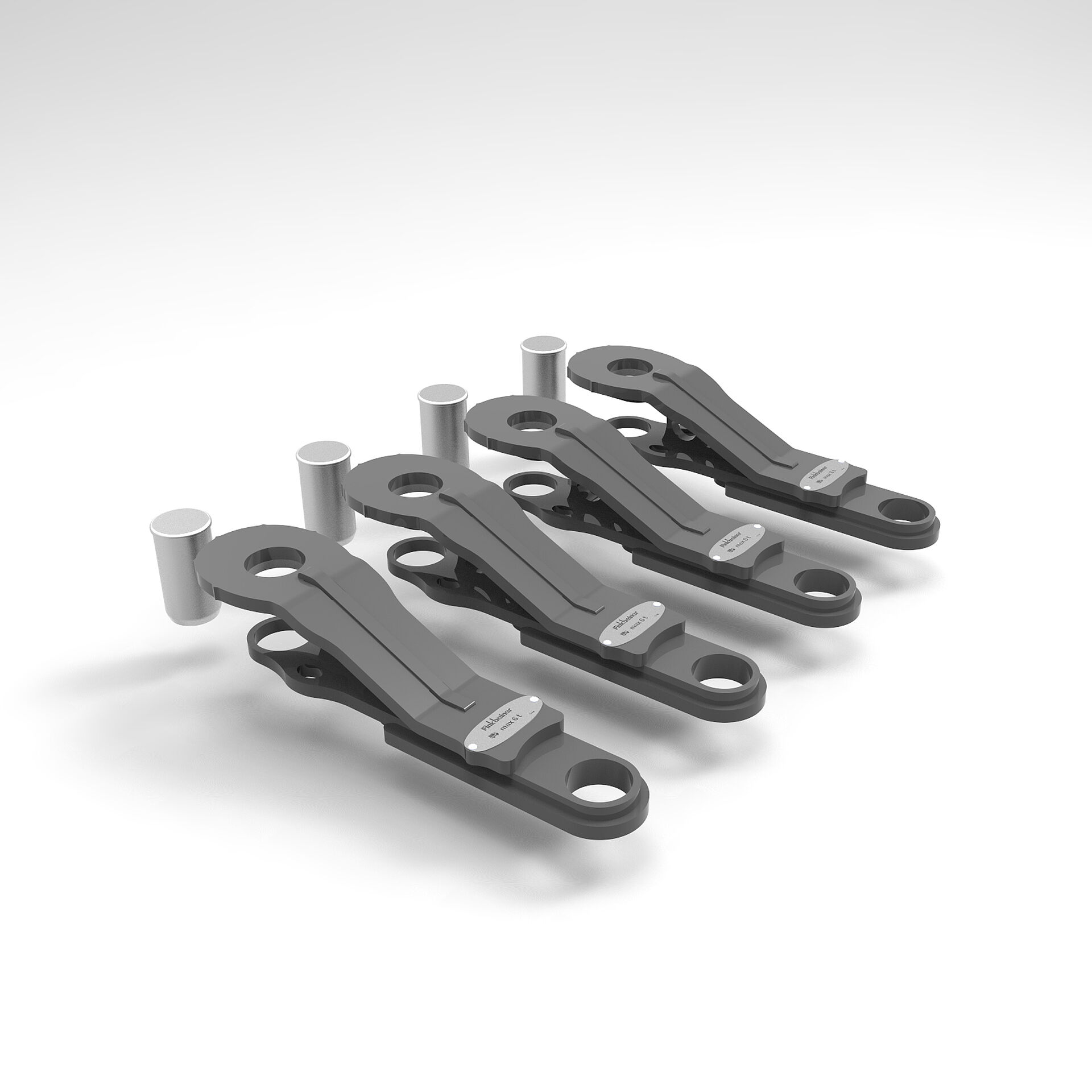

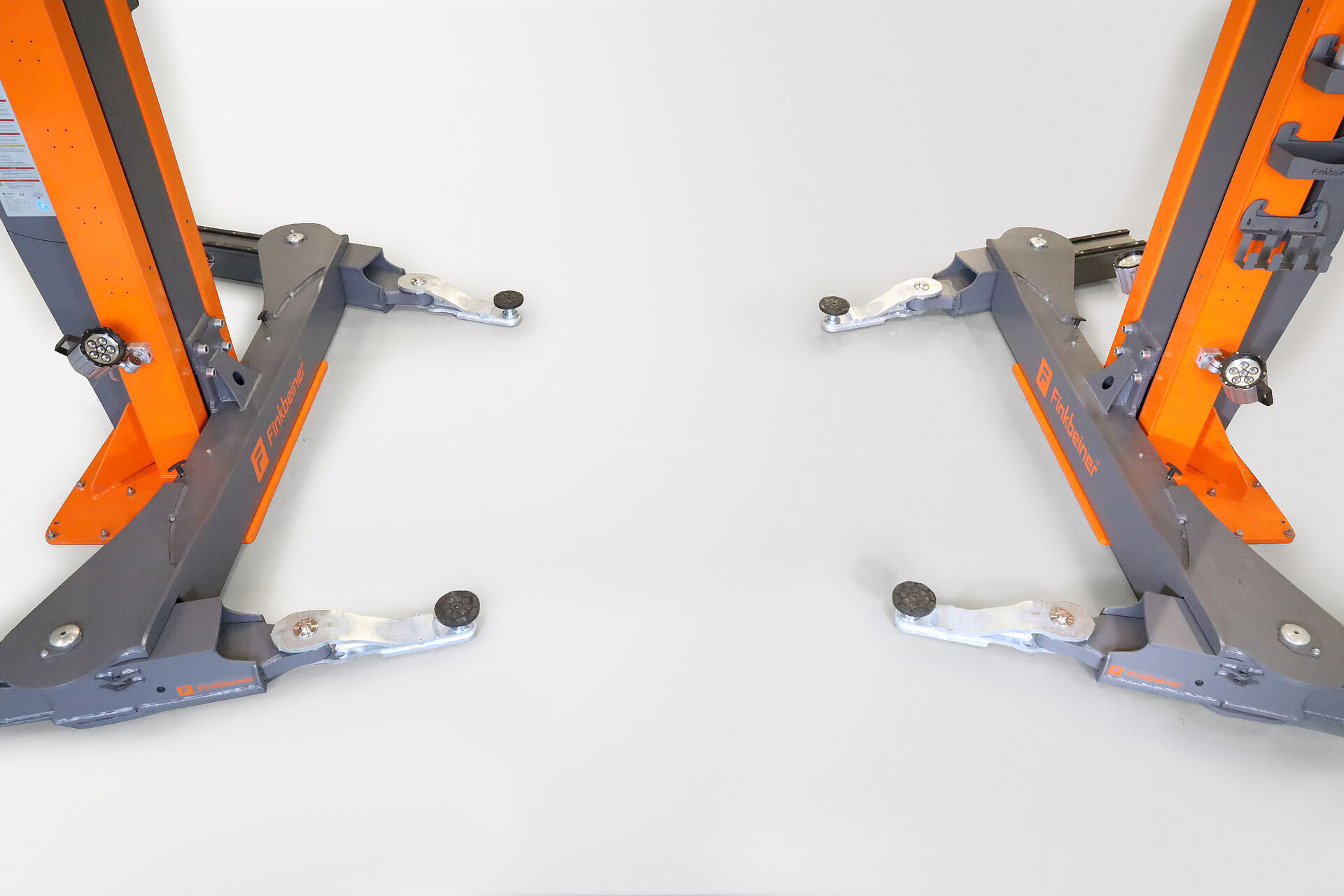

Accessory for 2-post lift TPL7500 for enlargement of the load support area for vehicles with extra long wheel bases. Pluggable extensions 400 mm swivelling by 35° towards inside, to reach difficult load support points at the vehicle. Reduced capacity of 5 t. 1 set consists of 4 pcs. extensions 400 mm and 4 pcs. plug pins.
Productdetails
product images
technical specifications
specifications
| article no. | TPL7500-SWE400 | |
| lifting unit | quantity per set | 4 |
| load support | capacity | 5 t |
| length of swivel arm at front, minimum (mm) | 485 mm | |
| length of swivel arm at front, maximum (mm) | 1930 mm | |
| length of swivel arm at rear, minimum (mm) | 485 mm | |
| length of swivel arm at rear, maximum (mm) | 1930 mm | |
| distance between supports, maximum | 5260 mm | |
| weight | 58 kg | |
| surface treatment | type of surface treatment | hot galvanisation |
