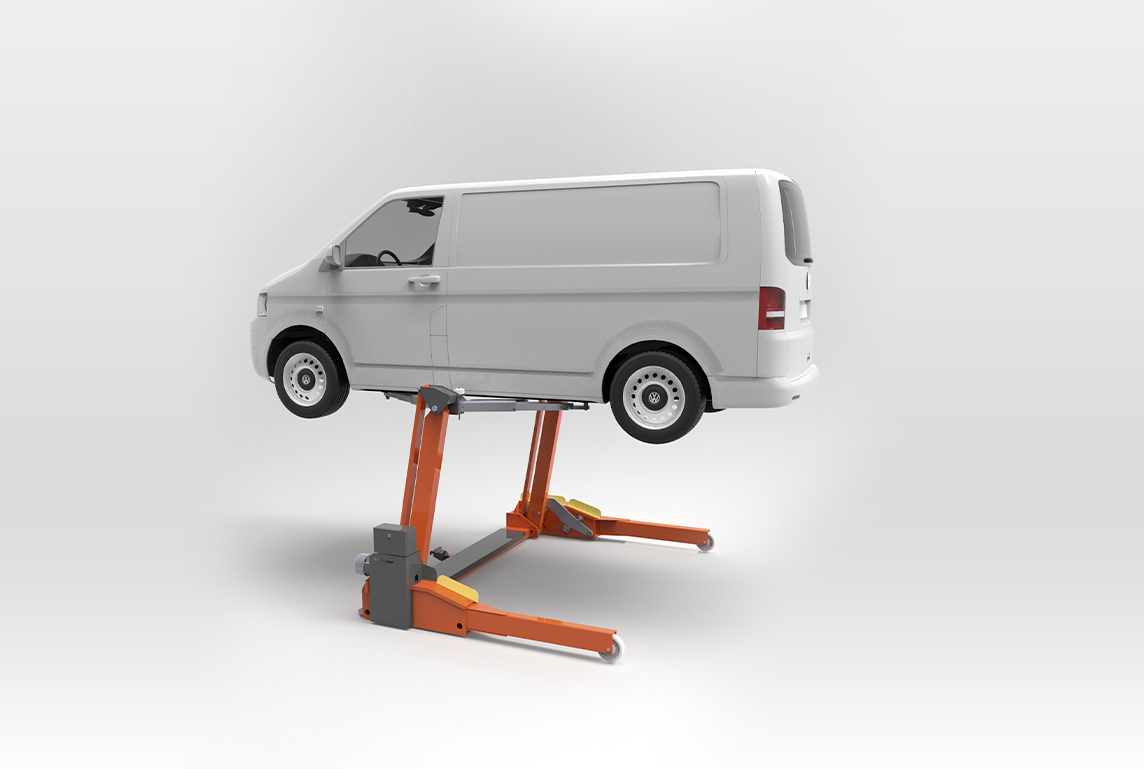

Portable lift, capacity 3000 kg, 400 V power supply, electro-hydraulic drive, asymmetric swivel arms, drive-in width 2300 mm, for cars, SUV, small vans
Please adhere to the lifting points prescribed by the vehicle manufacturer and check the suitable load supports, the dimensions and the swivelling range of the swivel arms.
By clicking on Load external content, I consent to the processing of my data by Youtube. This consent can be revoked at any time with effect for the future. Further information can be found in our privacy policy.
Your workshop area stays free for most versatile use. A fixed installation is not required. Plug and play!
The portable lift FHB can be used for various types of vehicles. Cars, SUV and vans are lifted by means of standard swivel arms or optional detachable platforms. Special vehicles such as mowers, golf-carts or small tractors by means of 4 adjustable drive-on platforms.
FHB car lift models ensure optimum free access to the underside of the vehicle and free door access at any lifting height.
The car is driven into the U-shape of the lift until the front wheels touch the crossbeam. Then the 4 telescopic swivel arms are positioned underneath the vehicle from the outside to adjust the lifting pads to the car's pick-up points.
article no. | FHB3000-04 | |
lifting unit | quantity of columns | 2 |
load support | load support | 4 swivel arms, asymmetric |
capacity | 3 t | |
length of swivel arm at front, minimum (mm) | 600 mm | |
length of swivel arm at front, maximum (mm) | 1070 mm | |
length of swivel arm at rear, minimum (mm) | 700 mm | |
length of swivel arm at rear, maximum (mm) | 1550 mm | |
distance between supports, maximum | 2780 mm | |
load pad Ø | 120 mm | |
lifting height | height adjustment of load pad | 35 mm |
lifting height / floor version | 1850 mm | |
speed | lifting time | 40 sec. |
lowering time (under load) | 40 sec. | |
drive | mode of drive | electro-hydraulic |
motor | AC voltage | |
motor power (kW) | 2.2 kW | |
power supply | type of power supply | mains supply |
electrical connection | 400V/3Ph+N+PE/50Hz | |
fuse (Amps) | 16 A | |
operation | mode of operation | 1 central control unit |
control | electric | |
regularisation | synchronisation | master-slave cylinder system |
travelling device | travelling device | 2 front wheels, 1 detachable wheel handle at rear |
load securing | load securing | hydraulic and mechanical |
dimensions | length | 2350 mm |
width | 3350 mm | |
height | 790 mm | |
drive-in width | 2300 mm | |
weight | 1100 kg | |
protection class | IP54 | |
surface treatment | type of surface treatment | powder coating |
colour | orange RAL2004 / grey RAL7015 |
