Semi-scissor platform lift - HDS70 Tandem
HDS70 Tandem
article no.: HDS70xxxxxF02 | Technical data sheet: Download
Product variants
Special version

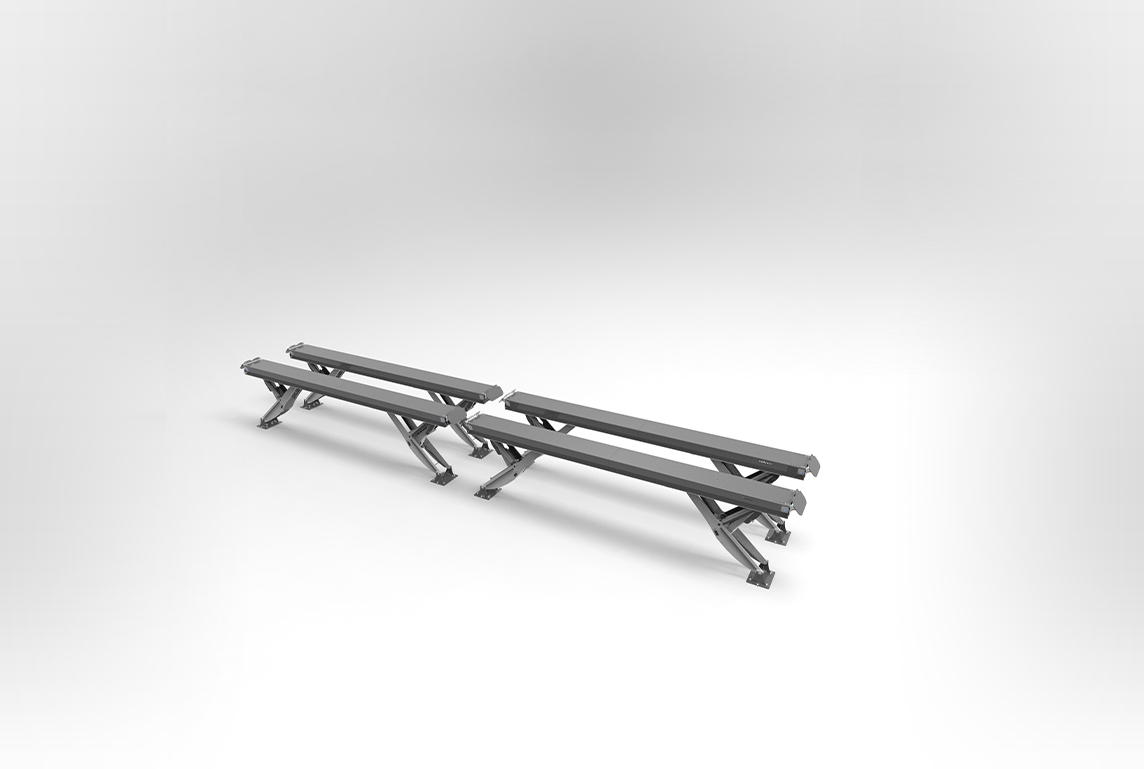

hot galvanisationThe heavy duty semi-scissor lift HDS70 consists of 2 single lifts in tandem, it is perfectly adapted for long vehicles such as complete truck and trailer or road trains. The total capacity is 70 t (2 x 35 t). Each lift can still be operated as a single lift.
Productdetails
accessories
HDSF07-ST02
Electric sockets 230V
HDSF07-DL02
Pneumatic sockets
HDSF07-BL-LEDXX
Set with 4 to 10 LED lamps
HDSF07-AS0X
anti-skid surface
anti-skid class R13
anti-skid class R13
HDSF0713-235
2 ascending ramps, 2350 mm
HDSF0713-330
2 ascending ramps, 3300 mm
HDSF0713-180H
2 ascending ramps, hanging,
1800 mm
1800 mm
HDSMHFL160-200-F07
jacking beam 16 t, pneumatic
HDSF07BA-XXXXX
floor levelling for
pits of platforms
pits of platforms
HDSF07FV-XX
Galvanizing
HDSF07DUROPLEX-XX
Special coating in addition
to galvanizing
to galvanizing
HDSF07-SK01
2. control box in the washing area
your system benefits
Operational safety
Double locking of load; hydraulic and mechanical at any lifting height. Accurate and smooth height synchronization without any increments.
Finkbeiner Y-tec semi scissor design
Y-tec half scissor design with vertical stroke
Y-tec Finkbeiner semi scissor design; the scissors are integrated at the external ends of the platforms
Finkbeiner Y-tec scissor design for vertical lifting and lowering
Free access to the vehicle
Construction without base frame, without cross connections, free access from all sides.
Finkbeiner platform lift HDS for ergonomic working underneath the vehicle
Free access from the side, for easy removal of wheels by means of a wheel carriage RW5.16
Scissor platform lift Finkbeiner HDS, ergonomic working by best access to the vehicle and optimum lighting conditions
Versatile use
Depending on the use and the building situation the platform lift HDS can be installed as floor or recessed version. The single lift is available with platform lengths from 6.5 m up to 14.5 m.
Finkbeiner HDS; the flush-mounted platforms can be passed over easily by a vehicle
Heavy duty lift Finkbeiner HDS, 25 t, electro-hydraulic, floor version
HDS25 - recessed version strip foundation
Finkbeiner platform lift HDS for articulated buses, length of runways 13 m
Finkbeiner lift HDS-Tandem; common or individual operation of lift 1 and lift 2, capacity total 50 tons
Washbay version of the scissor lift Finkbeiner HDS, fully galvanized
Superior platform profile
Platform profile with double Z profile, torsion-resistant, totally flat and straight.
HDS platform profile with integrated lamps and 230V socket
Pneumatic jacking beam 16 t, movable between the platforms of the HDS lift
technical specifications
specifications
| article no. | HDS70xxxxxF02 | |
| load support | load support | platforms |
| capacity | 70 t | |
| quantity of platforms | 4 | |
| width of platforms (mm) | 750 mm | |
| height of platforms (mm) | 360 mm | |
| distance between platforms | 1100 mm | |
| platform surface | smooth metal sheet | |
| height | lifting stroke effective | 1780 mm |
| lifting height / floor version | 2140 mm | |
| lifting height / recessed version | 1780 mm | |
| speed | lifting time | 90 sec. |
| drive | mode of drive | electro-hydraulic |
| motor | AC voltage | |
| motor power (kW) | 17.6 kW | |
| power supply | type of power supply | mains supply |
| electrical connection | 400V/3Ph+N+PE/50Hz | |
| compressed air connection | 6 bar | |
| fuse (Amps) | 50 A | |
| operation | mode of operation | 1 central control unit |
| activation | all | |
| control | electronic | |
| Softstart | yes | |
| regularisation | synchronisation | proportional valves, infinitely variable |
| load securing | load securing | hydraulic and mechanical |
| protection class | IP65 | |
| floor load | quality of foundation | C20/25 |
| surface treatment | type of surface treatment | powder coating |
| colour | grey RAL7015 |
