Wheel carriage - RW5.07
RW5.07
article no.: RW1100000 | Technical data sheet: Download
Product variants
Capacity 500 kg, lifting stroke 710 mm, adjustable fork for wheels Ø 270-1300 mm, fork length 600 mm, roller length 415 mm, hydraulic foot pump.

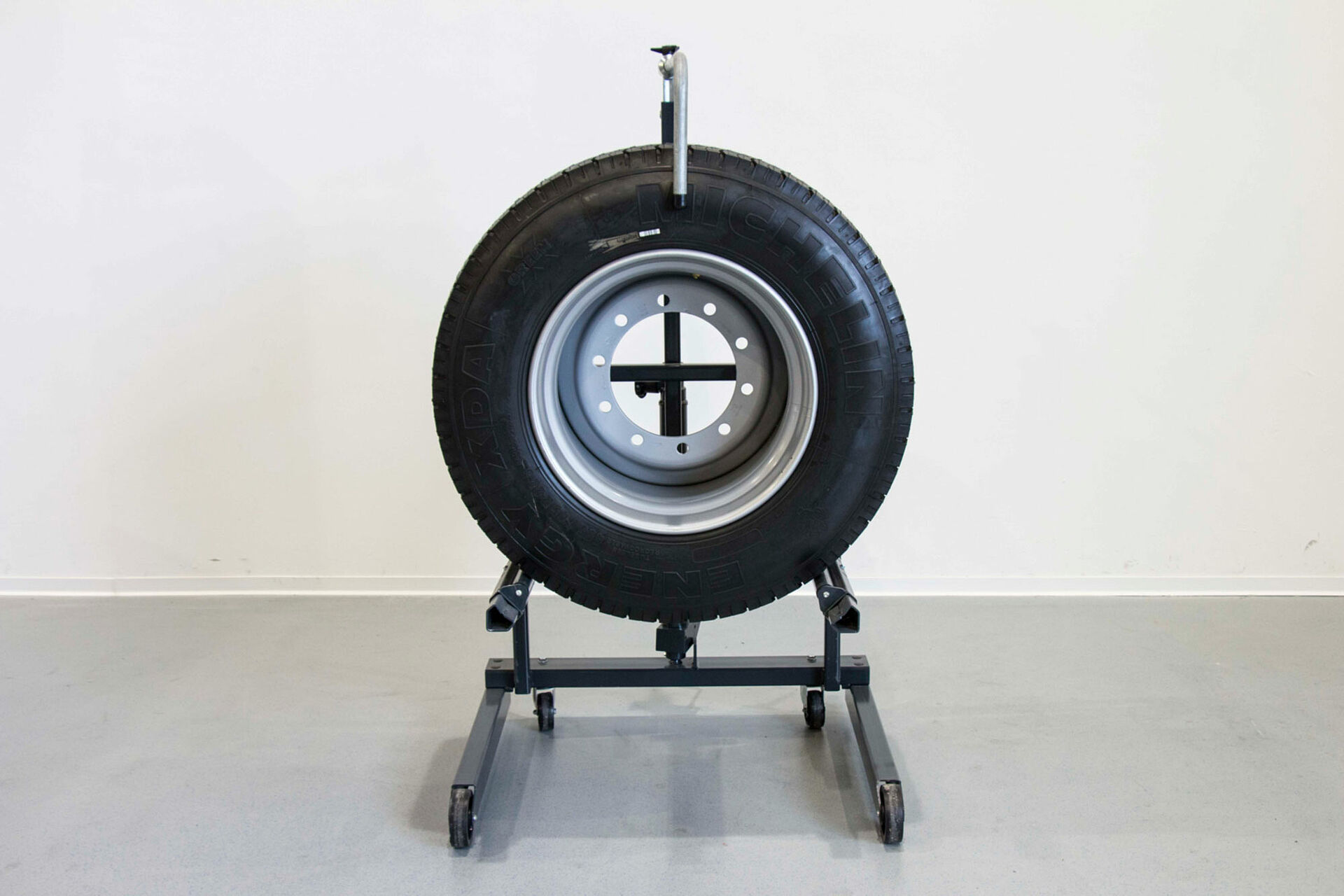

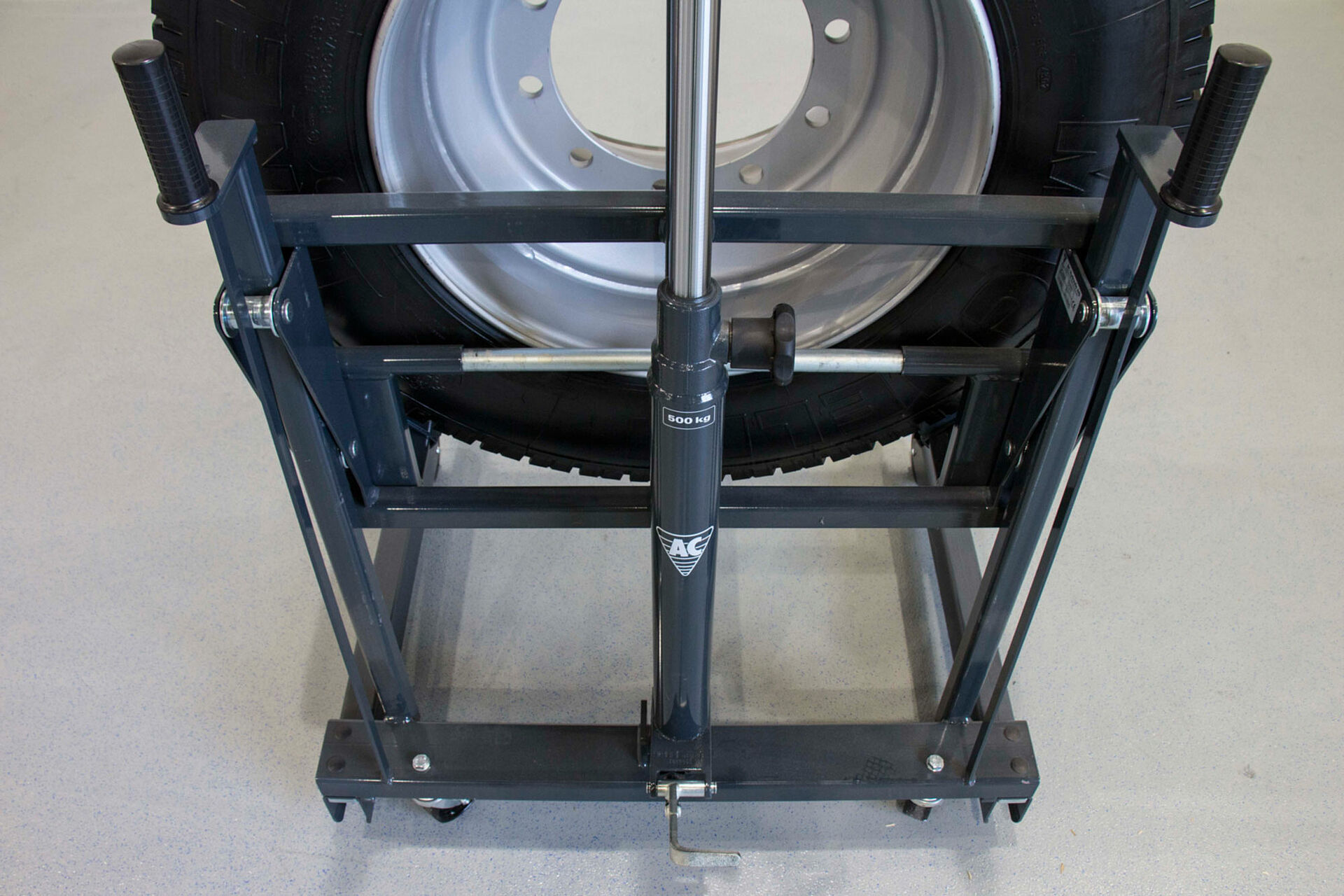

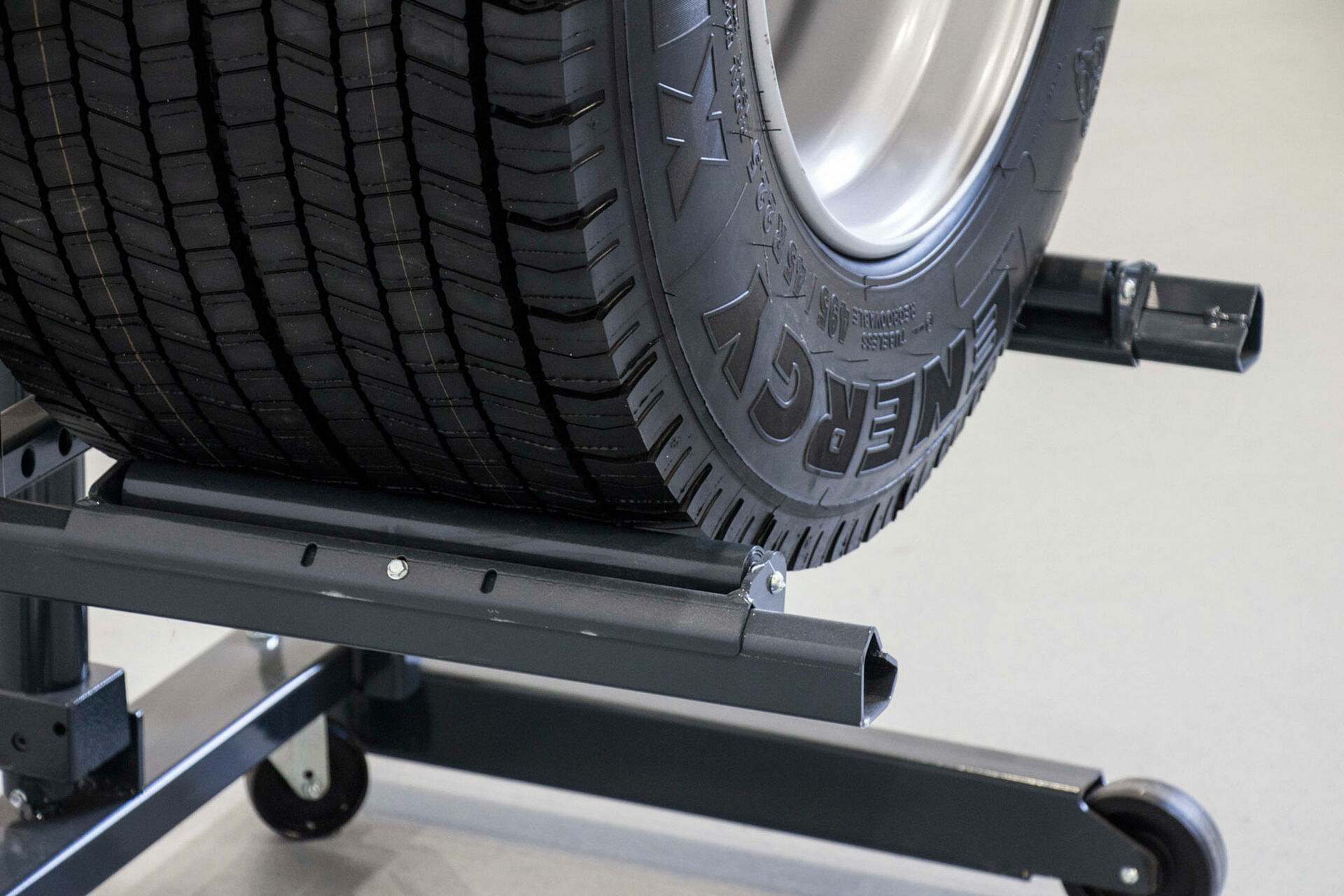

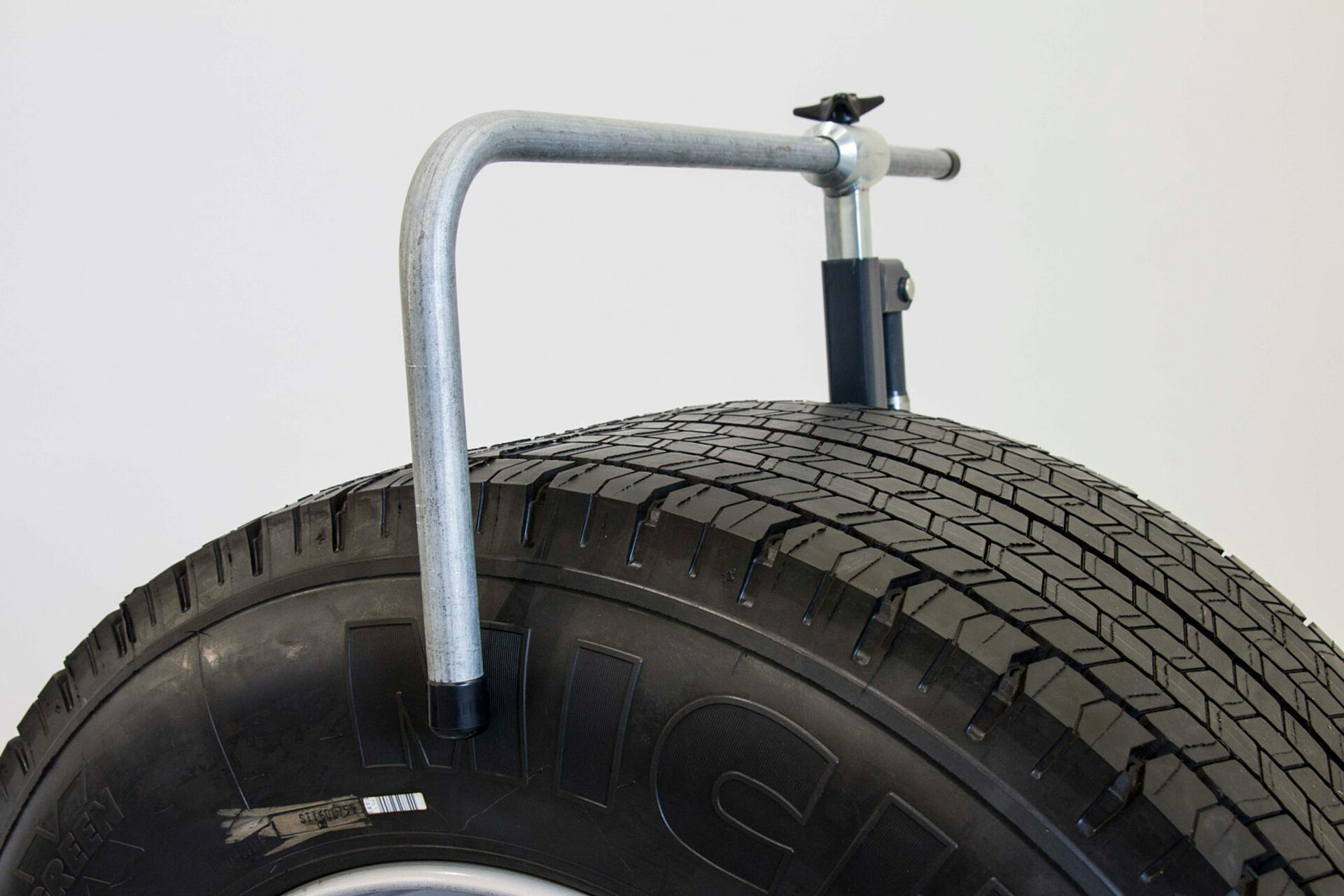

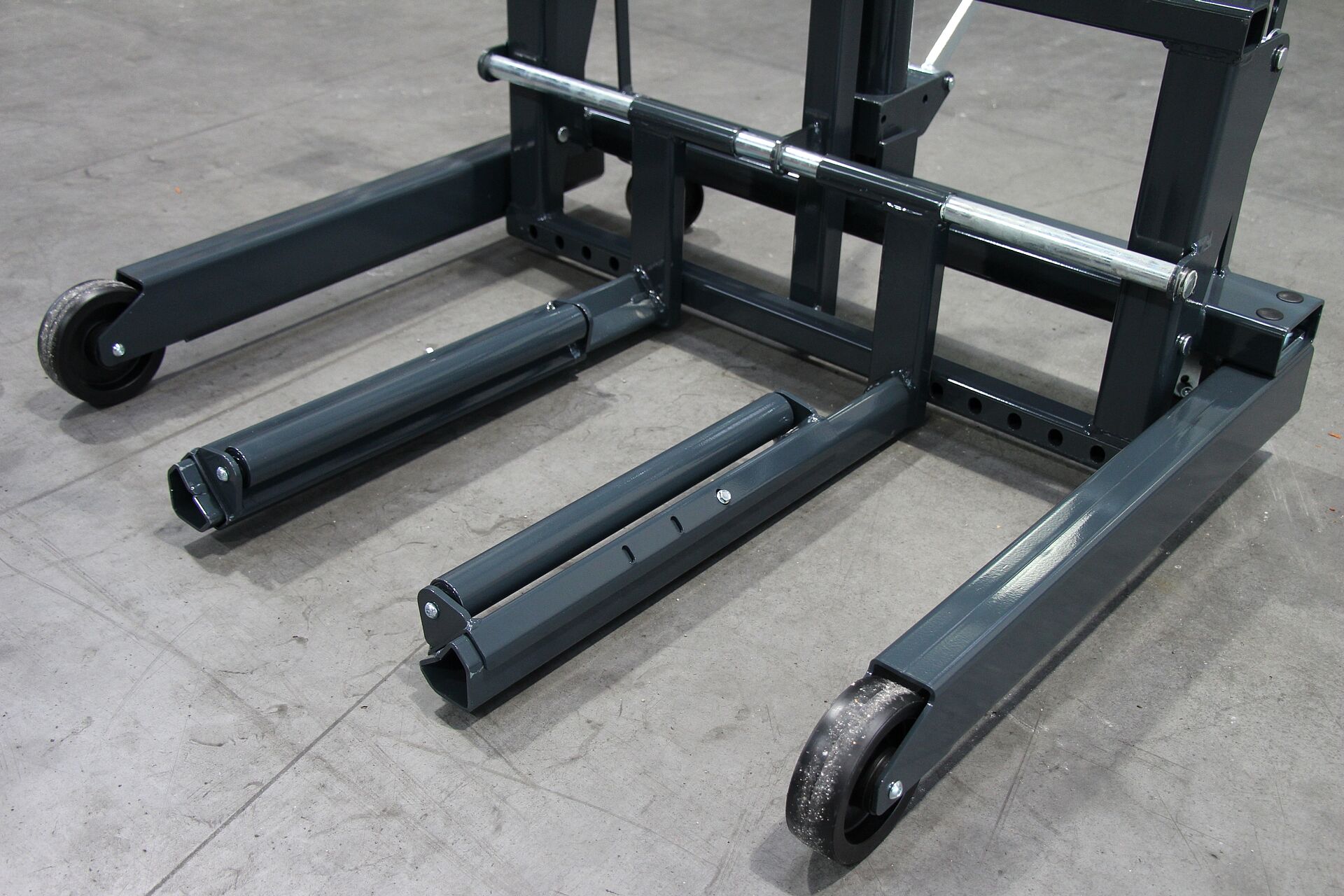

product images
practice images
technical specifications
specifications
| article no. | RW1100000 | |
| load support | load support | adjustable wheel fork with rolling supports |
| capacity | 0.5 t | |
| wheel size Ø minimum (mm) | 270 mm | |
| wheel size Ø maximum (mm) | 1300 mm | |
| length of fork (mm) | 600 mm | |
| lifting height | lifting stroke effective | 710 mm |
| drive | mode of drive | hydraulic foot pump |
| travelling device | travelling device | 4 guide wheels |
| load securing | load securing | hydraulic |
| dimensions | length | 1040 mm |
| width | 1160 mm | |
| height | 1200 mm | |
| weight | 95 kg | |
| surface treatment | type of surface treatment | powder coating |
| colour | grey RAL7016 |
