Stationary 2-post lift - TPL7500
TPL7500
article no.: TPL7500 | Technical data sheet: Download

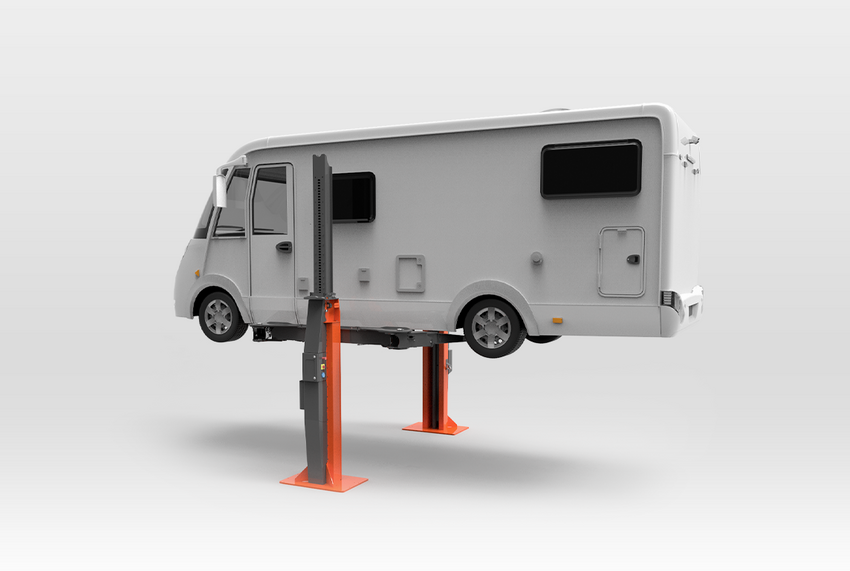

Our stationary two-post lift with a capacity of 7.5 t is suitable for all current cars, vans, light duty trucks and electric vehicles. This lift is equipped with a unique load support area as the swivel arms have a stretched length of 4600 mm. Mounted on roller bearings, the swivel arms are easy to move and can be pushed together to save space. No cross connection between the columns.
Productdetails

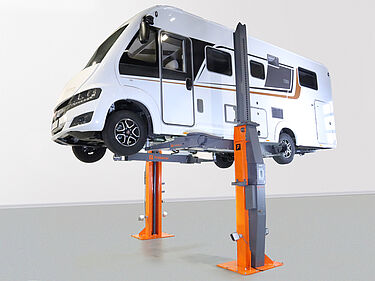

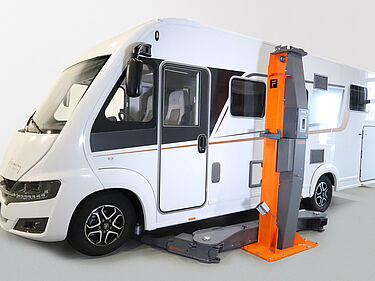

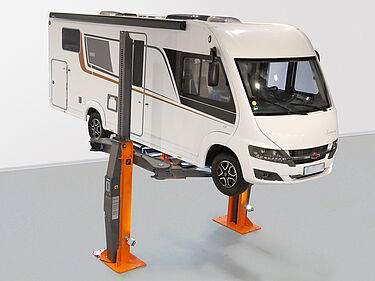

product images
accessories
TPL7500-FM07
set of anchors, stainless steel
TPL7500-SWE250
swivel arm extensions,
250 mm, 7.5 t
250 mm, 7.5 t
TPL7500-SWE400
swivel arm extensions,
400 mm, 5 t
400 mm, 5 t
TPL7500-WF1250
4 wheel forks, 5 t,
wheel Ø up to 740 mm
wheel Ø up to 740 mm
TPL7500-LS03
Load suspension kit
for VW ID series
for VW ID series
TPL7500-LS04
Load suspension kit
e.g. for Mercedes-Benz G-Class
e.g. for Mercedes-Benz G-Class
TPL7500-LS06
Load suspension kit
for transporters
for transporters
TPL7500-LA100
2 distance tubes 100 mm
TPL7500-LA200
2 distance tubes 200 mm
TPL7500-LA300
2 distance tubes 300 mm
TPL7500-LAH
holder for
supports and extension tubes
supports and extension tubes
TPL7500-UG
U-guidances as anti-slip protection
TPL7500-RP01-4
flat rubber pads
TPL7500-SPOT04
LED spots
TPL7500-TH
tool holder
TPL7500-SH
spray can holder
your system benefits

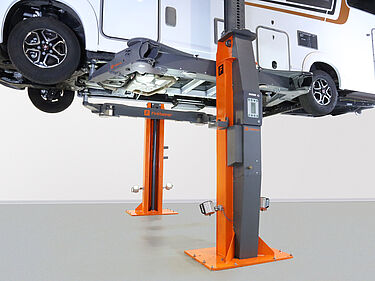

Extraordinary swivel arm concept
The unique swivel arm concept enables to lift all sorts of vehicles, from a compact car up to a large light duty vehicle. The support range of the telescopic swivel arms is extremely wide, suitable for short and long wheel bases of the vehicle. With the optional swivel arm extensions you reach even the most difficult pick-up points.
The swivel arms can be largely pivoted to the inside.
Telescopic arms completely extracted
Rotatable swivel arm extensions (+250 mm), reception height < 100 mm
The hydraulic arm locking prevents accidental torsion of the swivel arm; in a continuous way without mechanical latches.
Independent columns freely to install
The drive-in width of the 2-post lift TPL is freely selectable, depending on the field of application and the vehicles to be lifted.
Individual drive-in width according to customer request
technical specifications
specifications
| article no. | TPL7500 | |
| lifting unit | quantity of columns | 2 |
| load support | load support | 4 swivel arms, symmetric |
| capacity | 7.5 t | |
| length of swivel arm at front, minimum (mm) | 565 mm | |
| length of swivel arm at front, maximum (mm) | 1250 mm | |
| length of swivel arm at rear, minimum (mm) | 565 mm | |
| length of swivel arm at rear, maximum (mm) | 1250 mm | |
| distance between supports, maximum | 4600 mm | |
| load pad Ø | 120 mm | |
| height | lifting stroke effective | 1900 mm |
| lifting height | 2090 mm | |
| minimum support height (mm) | 130 mm | |
| height adjustment of load pad | 60 mm | |
| height maximum | 4780 mm | |
| speed | lifting time (with nominal load) | approx. 60 sec |
| lowering time (with nominal load) | approx. 45 sec (depending on load) | |
| drive | mode of drive | electro-hydraulic |
| motor | Three phase alternating current | |
| motor power per column (kW) | 2.2 KW | |
| power supply | electrical connection per column | 400V/3Ph+N+PE/50Hz |
| fuse (Amps) | 16 A | |
| communication | communication via radio, wireless | |
| operation | mode of operation | operation at each column |
| control | electronic | |
| Softstart | yes | |
| regularisation | synchronisation | proportional valves, infinitely variable |
| load securing | load securing | hydraulic and mechanical |
| dimensions | drive-in width | 2500 mm - 3000 mm (variable) |
| weight | 1900 kg | |
| protection class | IP54 | |
| floor load | quality of foundation | C20/25, at least 200 mm |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
