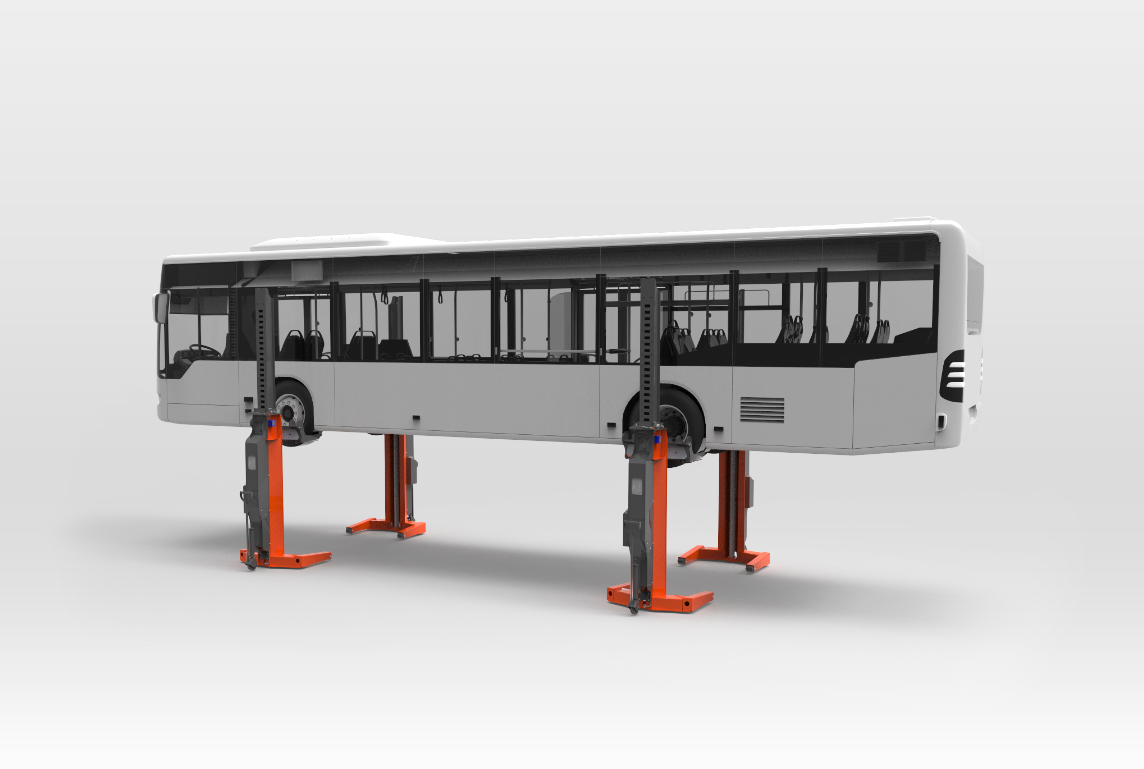

The mobile column EHB905V11DC with a capacity of 5.5 t each, is particularly designed for buses and public transportation companies as well as trucks with an axle weight of up to 11 tons. A lift set can be composed of up to 10 columns:
The existing workshop area remains free for various use. You take the mobile columns to just where you need them, indoors or outdoors. Thus the hoists of model EHB can be used most versatile and multi-functional.
Within the large range of mobile columns you can select the right lift perfectly suitable for your vehicles and your applications.
Mobile columns are available from 2.5 up to 15 tons capacity and adjustable support forks for wheel diameters of up to 2.5 m, for standard commercial vehicles or special heavy duty vehicles.
The individual columns can be freely positioned to the vehicle; 2, 4, 6, 8 or more per lift set.
You can achieve even more versatile use of the lifts by various accessories such as support cross beams to lift the vehicle at the chassis.
For washbay or outdoor applications special models are available.
Have fun to get your work done! With free access to the underside of the raised vehicle; with sufficient head clearance by large lifting height; with best lighting conditions underneath the vehicle which can even be improved using LED spotlights; with efficient working at floor level and short distances to walk; with your portable workshop equipment such as transmission jacks, tool boxes etc. easily maneuvered directly underneath the vehicle; with axle stands to support the vehicle for free access to wheels and brakes.
The lift columns are moved towards the vehicle and positioned at the wheels, quickly and simply. The wheel forks can be adjusted in order to touch the wheels from both sides and to secure the load.
Nonstationary and movable vehicle lifts do not require expensive foundations works or a permanent installation. Just a standard even workshop floor is sufficient to operate the lift.
In comparison to all other workshop systems such as pits, in-ground or stationary platform lifts mobile columns by far represent the most economic workshop solution.
|lifting unit||type of columns||all columns identical|
|quantity of columns||1|
|quantity of columns, maximum||10|
|load support||load support||adjustable wheel fork|
|capacity per column||5.5 t|
|wheel size Ø minimum (mm)||550 mm|
|wheel size Ø maximum (mm)||1140 mm|
|length of fork (mm)||385 mm|
|lifting height||lifting stroke effective||1750 mm|
|lifting height||1850 mm|
|frame height at front (mm)||100 mm|
|speed||lifting time||70 sec.|
|lowering time (under load)||70 sec.|
|drive||mode of drive||electro-hydraulic|
|motor power per column (kW)||2.2 KW|
|power supply||type of power supply||battery-powered|
|type of battery||deep cycle, maintenance-free|
|battery capacity per column||80 Ah|
|lift cycles at full load||25|
|fuse, per column (Amps)||2.5 A|
|total battery voltage||24 V|
|length of charging cable||10 m|
|charging voltage||230 V|
|frequency of power supply||50 Hz|
|charging time||8 h|
|communication||communication via radio, wireless|
|operation||mode of operation||operation at each column|
|activation||all, individual, pair|
|regularisation||synchronisation||proportional valves, infinitely variable|
|travelling device||travelling device||at each column|
|travelling device at front||2 front wheels, fixed|
|travelling device at rear||1 wheel handle, spring-loaded, self-lowering under load|
|ground clearance at front||15 mm|
|ground clearance at rear||35 mm|
|load securing||load securing||hydraulic and mechanical|
|height of fork (mm)||100 mm|
|weight||weight per column (kgs)||540 kg|
|surface treatment||type of surface treatment||powder coating|
|colour||orange RAL2004 / grey RAL7015|
